PureScript Backend Wasm

An experimental WebAssembly backend for PureScript compiler

Overview

The compiler consumes purs's CoreFn (corefn.json) and externs (externs.cbor) output and produces a single WebAssembly module via the Binaryen JS API. It targets Wasm　GC, so heap values (ADTs, records, closures) are reclaimed by the host VM.

For more information, please consult the documentation site.

Future Enhancements

• Incremental build
• WASI support
• Monomorphization optimization

Benchmarks

The same PureScript source compiled three ways and timed on one machine (lower is better):

• wasm — this backend
• JS (purs backend) — purs's stock JavaScript output
• JS (with purs-backend-es) — the optimizing JS backend

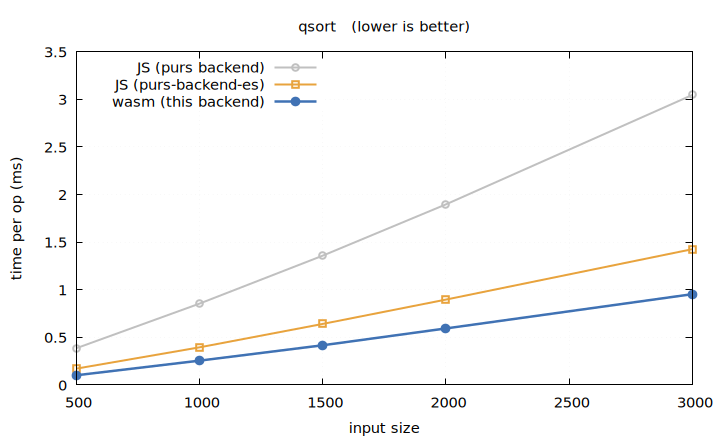

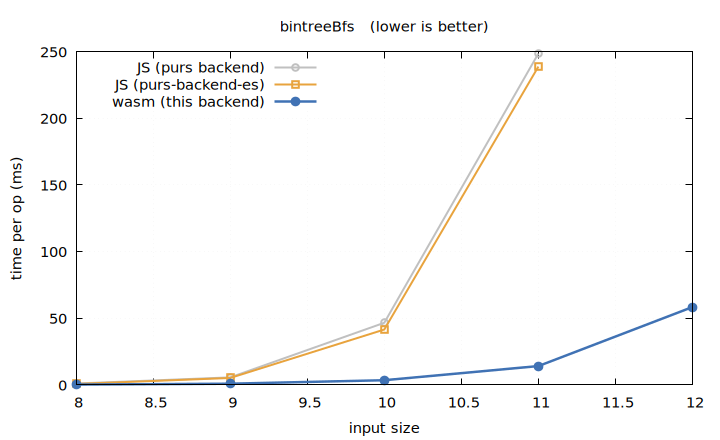

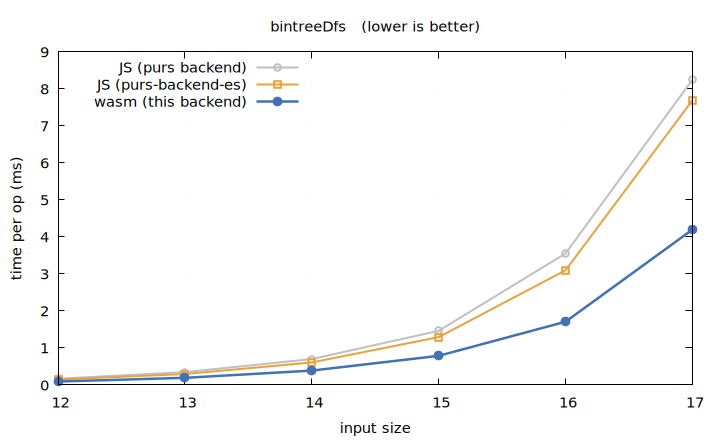

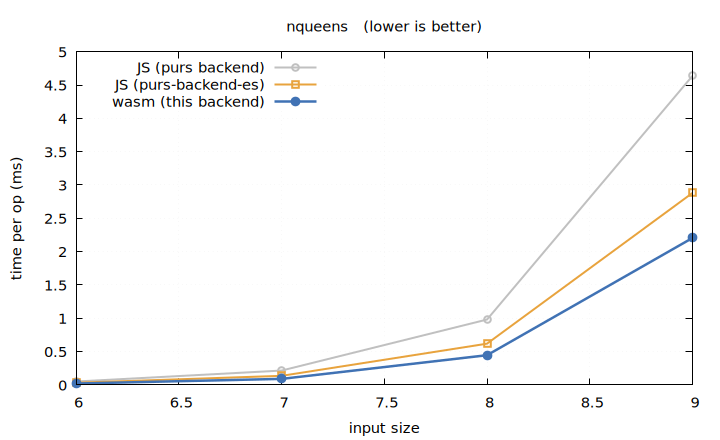

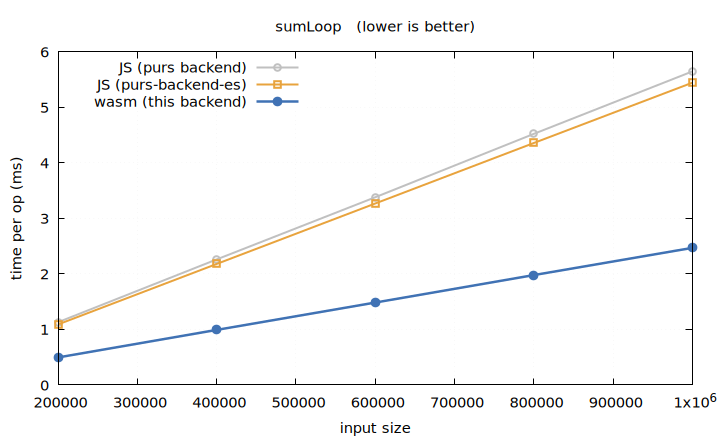

The wasm build is fastest on the algorithmic benchmarks, and completes the deep-recursion bintreeBfs where both JS backends overflow the call stack (JavaScript has no tail-call elimination). The margin is widest on the allocation- and recursion-heavy benchmarks (sumLoop ~12×, nqueens / bintreeDfs ~2.5×) and narrowest on the arithmetic ones (fib ~1.9×): much of the win comes from the compact Wasm-GC value representation — tagged structs reclaimed by the host GC, versus JavaScript object allocation — as well as from the arithmetic unboxing.

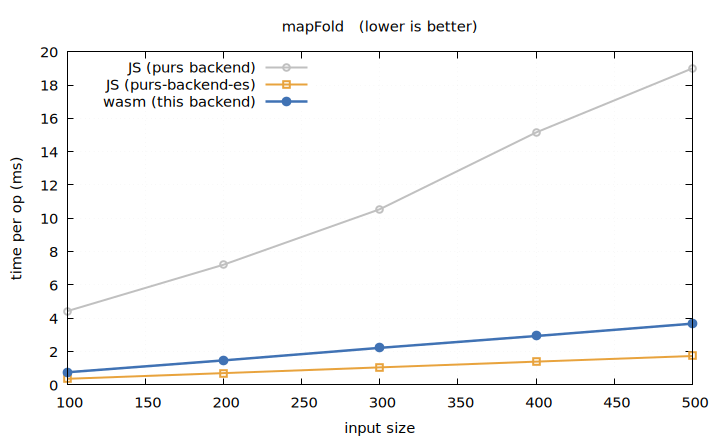

The library higher-order benchmarks turn on whether the map/foldl closure is specialized (fused into a direct loop) or applied per element via an indirect call_ref on boxed operands. mapFold left-folds a Data.List: its map/foldl use the where-worker idiom, which a post-inline specialization pass (ADR 0027) reaches once inlining collapses the forwarder — so the closures fuse, cutting mapFold ~7× (from ~8× behind purs-backend-es to roughly on par with it). It does not yet beat purs-backend-es: the residual gap is that a Data.List Int element stays boxed, whereas V8 keeps it unboxed — a separate cost that needs monomorphization (issue #19). mapFoldArray does the same over a Data.Array, but its map/foldl are foreign (ulib .wat, no body to specialize into), so the closure cannot be fused at all and it still trails further — the current frontier; moving the array HOFs into PureScript over first-order primitives (WasmBase, issue #26) is what lets ADR 0027 reach them too. Tracked in issue #5.

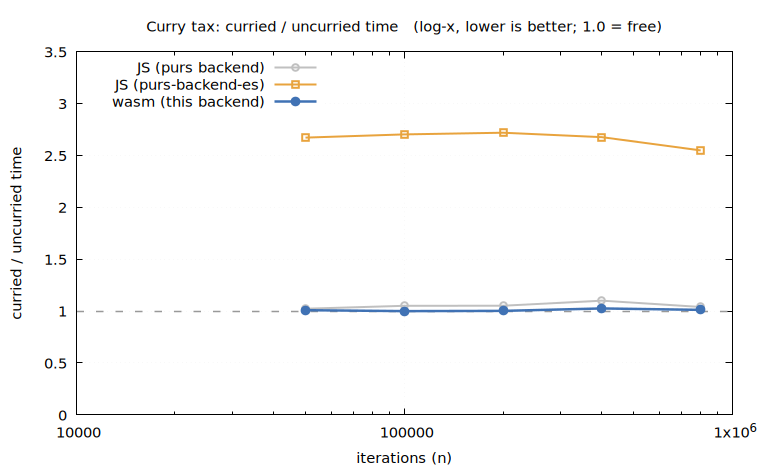

The curry-vs-uncurry graph isolates a property the wasm backend gets for free: Fn / EffectFn lower to the same closures as curried code, so curried and uncurried application are the same code (curried/uncurried time ~1.0 at every size). The same PureScript on purs-backend-es pays ~3× for curried application across a dynamic boundary (the stock purs backend's curried closures, by contrast, V8's escape analysis frees) — so on wasm the JS habit of hand-uncurrying hot paths is genuinely unnecessary.

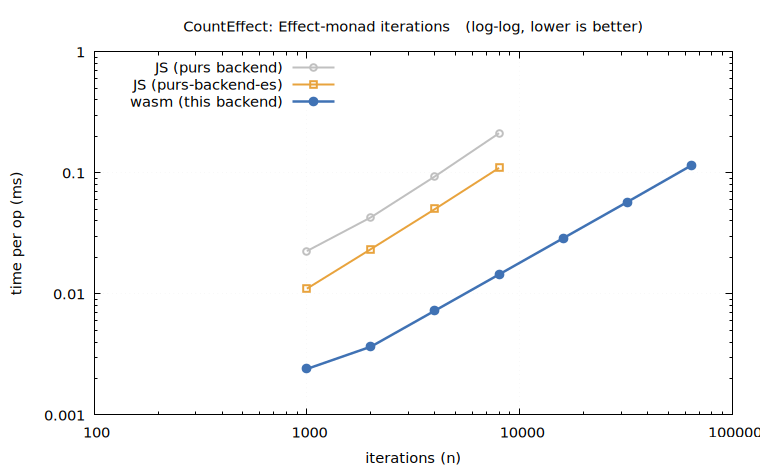

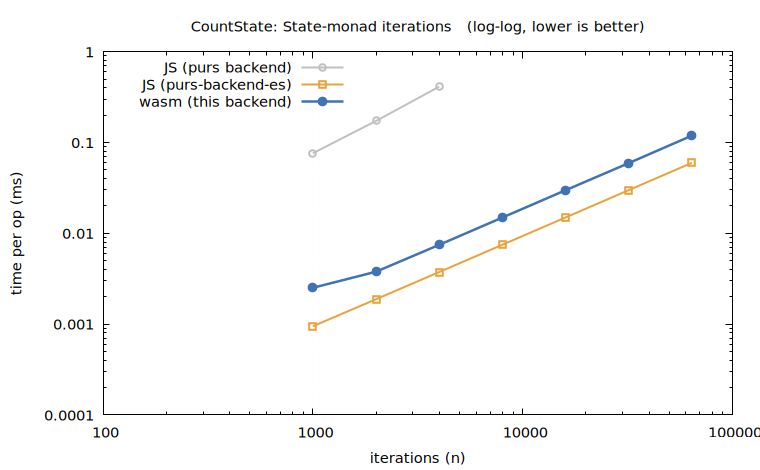

These benchmarks measure steady-state throughput after warmup: both the JS and the Wasm code are run long enough for V8 to tier up hot code before timing, so the results reflect optimized runtime performance rather than startup latency. The graphs below are rendered and published to GitHub Pages by CI on each push to main (CI-runner timing is indicative — the curves, ratios, and stack-overflow behaviour are the signal). Reproduce locally with cd bench && npm run graph.

Example

A small expression-language evaluator — an ADT, pattern matching, recursion, and Int arithmetic (example/src/Main.purs):

module Example.Main where

import Prelude

data Expr
  = Add Expr Expr
  | Mul Expr Expr
  | Neg Expr
  | Lit Int

eval :: Expr -> Int
eval = case _ of
  Add x y -> eval x + eval y
  Mul x y -> eval x * eval y
  Neg x   -> negate (eval x)
  Lit n   -> n

eval compiles to the wat below. The Prelude bundle (the + / * / negate that lower to the i32.add / i32.mul / i32.sub intrinsics, plus the $negate helper) and the host i32 export shim are elided to keep the focus on eval; identifiers are given readable names and the output is lightly reformatted.

Note what is not there: eval allocates nothing. Each constructor is a struct subtype of the tag-only base $Data, so a match reads the tag by casting to $Data, then a branch casts to the constructor's own struct and reads its fields with struct.get. Arithmetic runs as unboxed i32, eval returns an unboxed i32, and Lit's Int field is stored unboxed — Lit n just reads an i32 and returns it. No dictionary closures, no call_ref, no $Int boxing. (The middle-end eliminates the type-class dictionaries and unboxes the arithmetic; the concrete Int field is unboxed from the externs type — see the Int/Number unboxing ADR.)

(module
 ;; Types (names added for readability; the optimiser emits numeric ids). Every
 ;; constructor is a struct subtype of the tag-only base $Data:
 ;;   $Data = (struct i32)                          -- the ctor tag; the cast target for a match
 ;;   $Bin  = (sub $Data (struct i32 eqref eqref))  -- Add / Mul: tag + two Expr fields
 ;;   $Un   = (sub $Data (struct i32 eqref))        -- Neg: tag + one Expr field
 ;;   $Lit  = (sub $Data (struct i32 i32))          -- Lit: tag + an unboxed Int field
 (export "eval" (func $eval$export))

 ;; --- elided: the Prelude bundle (intAdd / intMul / intSub intrinsics, the
 ;;     $negate helper) and the host i32 export shim ---

 (func $eval (param $0 eqref) (result i32)          ;; Expr -> Int — returns an unboxed i32
  (local $x eqref) (local $y eqref)
  (if (result i32)
   (i32.eq (struct.get $Data 0 (ref.cast (ref $Data) (local.get $0))) (i32.const 0))  ;; tag 0 = Add?
   (then  ;; Add x y  ->  eval x + eval y
    (local.set $x (struct.get $Bin 1 (ref.cast (ref $Bin) (local.get $0))))
    (local.set $y (struct.get $Bin 2 (ref.cast (ref $Bin) (local.get $0))))
    (i32.add (call $eval (local.get $x)) (call $eval (local.get $y))))               ;; unboxed — no struct.new
   (else (if (result i32)
    (i32.eq (struct.get $Data 0 (ref.cast (ref $Data) (local.get $0))) (i32.const 1)) ;; tag 1 = Mul?
    (then  ;; Mul x y  ->  eval x * eval y
     (local.set $x (struct.get $Bin 1 (ref.cast (ref $Bin) (local.get $0))))
     (local.set $y (struct.get $Bin 2 (ref.cast (ref $Bin) (local.get $0))))
     (i32.mul (call $eval (local.get $x)) (call $eval (local.get $y))))
    (else (if (result i32)
     (i32.eq (struct.get $Data 0 (ref.cast (ref $Data) (local.get $0))) (i32.const 2)) ;; tag 2 = Neg?
     (then  ;; Neg x  ->  negate (eval x)
      (return_call $negate (call $eval (struct.get $Un 1 (ref.cast (ref $Un) (local.get $0))))))
     (else (if (result i32)
      (i32.eq (struct.get $Data 0 (ref.cast (ref $Data) (local.get $0))) (i32.const 3)) ;; tag 3 = Lit?
      (then  ;; Lit n  ->  n   (the field is already an unboxed i32)
       (struct.get $Lit 1 (ref.cast (ref $Lit) (local.get $0))))
      (else (unreachable))))))))))
